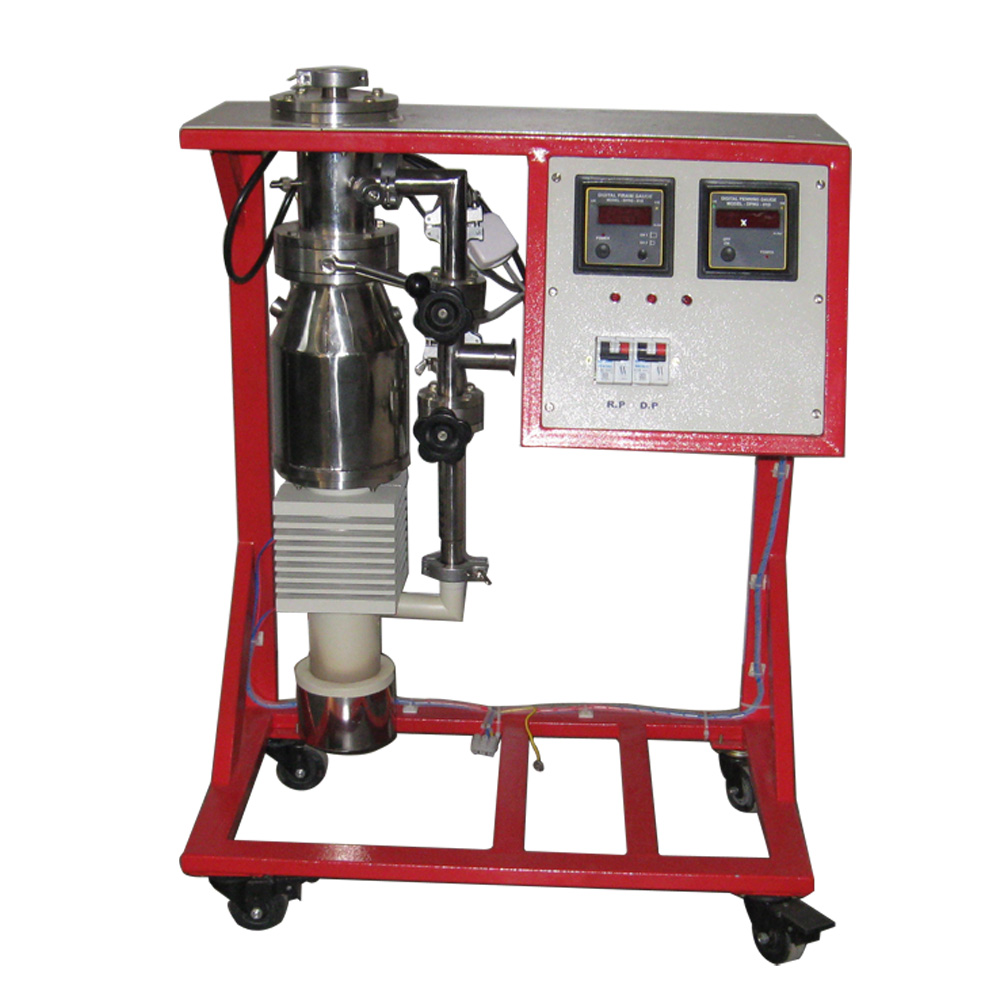

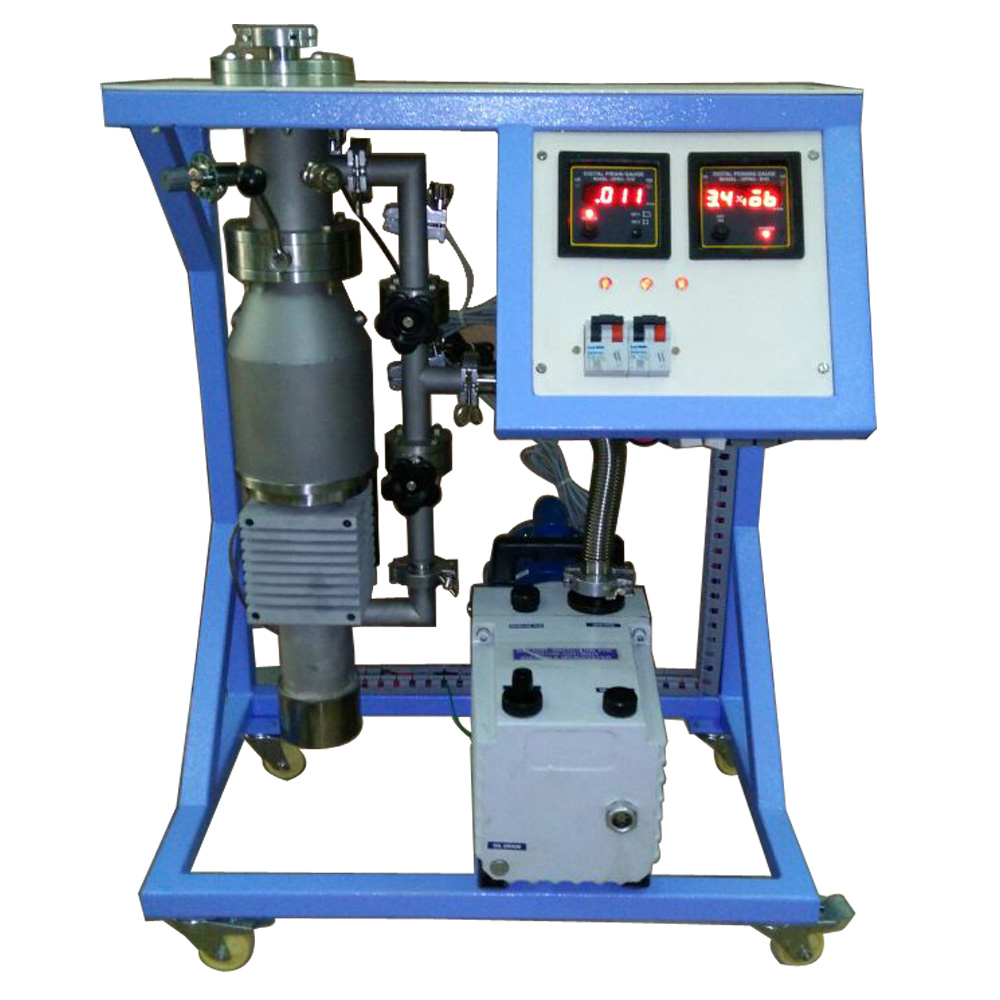

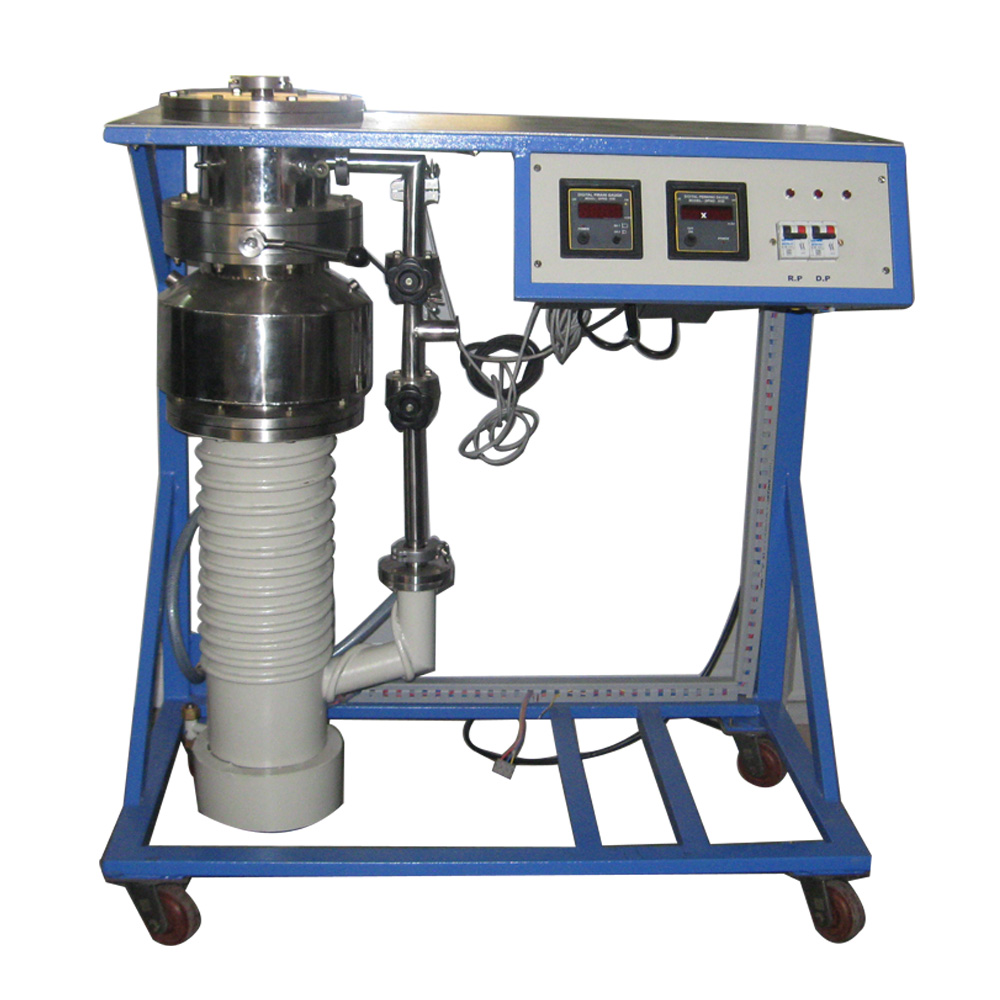

Vacuum Pumping Systems

V R TECHNOLOGIES The vacuum pump functions by removing the molecules of air and other gases from the vacuum chamber (or from the outlet side of a higher vacuum pump if connected in series). While the pressure in the chamber is reduced, removing additional molecules becomes exponentially harder to remove.

The Vacuum Pumping Systems are capable of achieving an ultimate vacuum of 10-6 m.bar. Liquid nitrogen (optional) is to minimize the back-streaming of oil vapors, and ensures clean and better ultimate vacuum of 10-6 m.bar range.

• All components easily accessible.
• Compact construction
• Simple operation

• Liquid Nitrogen Trap
• Water Cooled Chevron Baffle
• Electro pneumatically operated valve. (Butterfly valve, Rightangle Valve)
• Push buttons, automatic versions are available on request
